Suspended acoustic baffles

Acoustic Answers

Suspended acoustic baffles

Suspended baffles are generally employed in larger spaces with high ceilings where it is desirable for the sound absorber to be suspended closer to the noise source.

And where direct adhesion to the ceiling or walls is not an option. However, they are equally adaptable as a design feature in smaller spaces.

Our suspended baffle range is generally offered either as flat “Plano” sheets or as cylinders, “Rondo”. Both can be suspended in portrait or landscape orientation. Suspension as horizontal “islands” is also an option for flat (Plano) products.

The Plano sheet baffles are generally offered as 1250 x 625 x 50mm and Rondo cylinders as 1200mm x 150mm diameter.

Beyond our standard products, our ability to cut to order allows us to offer a high degree of design flexibility. Custom dimensions for both products are available as are various 2D shapes such as clouds, animal silhouettes and stars and 3D shapes including wedges or cubes, amongst others. Should you feel like something a little more exciting or different we invite you to use your imagination and make a request. Pricing for these is “on application”.

Our available standard colours are white or pale grey. A fabric finish is available for square cut products (no bevel) only.

As all our baffles are cut from 100% original German designed and manufactured specialist acoustic grade foam they are extremely lightweight and unlike heavier polyester fibre products they adapt easily to various, commonly available and cost-effective suspension methods and add very little to existing ceiling/building loads. They are delivered prefinished with no camouflaging facings required, and there are no raw edges to be disguised or to spoil the overall finish.

The raw material enjoys both a compliant high fire rating, and high-performance sound absorption. They do not promote mould or mildew or harbour bacteria making them ideal for high humidity environments.

We can deliver nationally, and the product arrives ready to install directly from the carton.

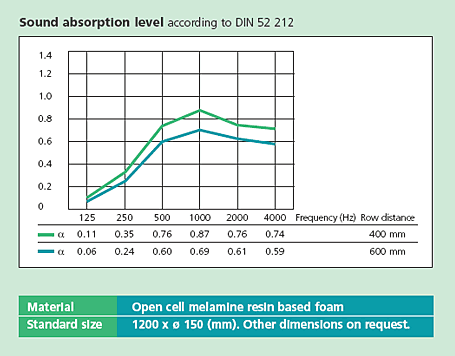

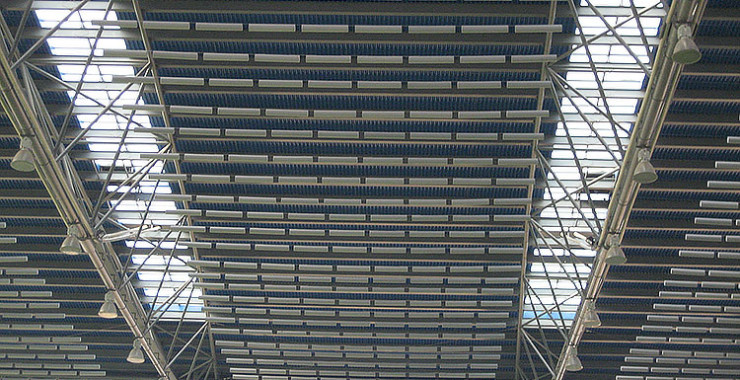

Rondo baffle

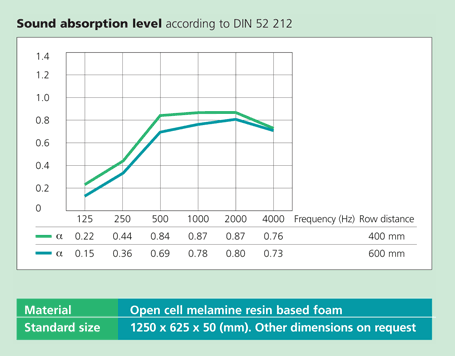

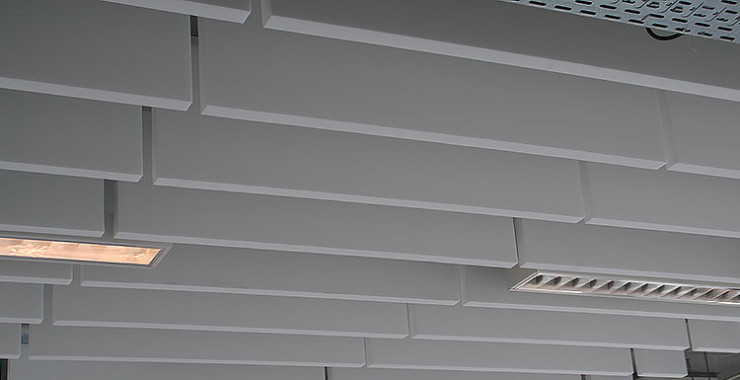

Plano baffle
